DISCLAIMER - Absolutely no refunds. All sales are final. We cannot be held responsible if you ruin your pedal. I got ripped off by a buyer of my TR-2 mod. Said he wasn't happy with the mod so I offered to buy the TR-2 from him. I gave him $110 in good faith. When I received the pedal it was non-functioning. He had drilled the hole for the pot in the wrong place piercing the ribbon going to the depth pot and completely pulled 4 traces from the PCB. And he wanted to know why the mod sounded bad. Because of this I will no longer issue refunds of any type on mods. If you do not have the skills required to perform the mod then please let us do the mod for you. Monte Allums


Subscribe to my Newsletter

* indicates required


Boss Boss PQ-4 Hi-Fi Plus Mod Kit

WARNING! — The OPA2134PA opamp, of which are included in many of my kits, is currently extremely hard to find. Mouser and Digikey are currently out of stock with none expected until 2023. I have hundreds in stock. BE CAREFUL BUYING THE OPA2134PA ON EBAY. THE MAJORITY ARE FAKE! Manufacturers in China are rebranding cheaper opamps and selling them as OPA2134PA opamps. I test all my OPA2134PA opamps I buy. You can easily test whether a OPA2134PA has been rebranded. Do this, take some Acetone on a Q-tip and rub across the lettering of the opamp. If it is Fake the ink used to print the labeling will dissolve into the Q-tip.

These are highly sought after. Bringing top money on eBay. Stock they are really great tone shaping pedals but are rather noisy. This mod reduces noise and adds clarity to an already good circuit. With this mod we replace the cheaper noisy op-amp chips with low noise higher quality chips.

Lower quality capacitors are also replaced reducing noise even more and also adding a more focused Hi-Fi tone to the circuit. Noise is substantially reduced and the signal is passed through preserving the original tone of your guitar. You'll be shocked at the improvement this mod will make on this.

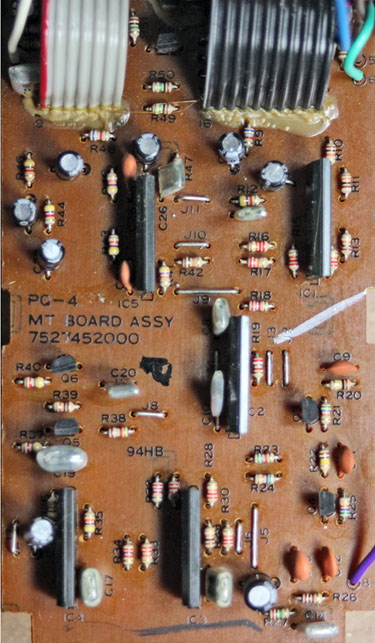

I am unsure if there are different versions of this circuit so before you order make sure your pcb looks like this.

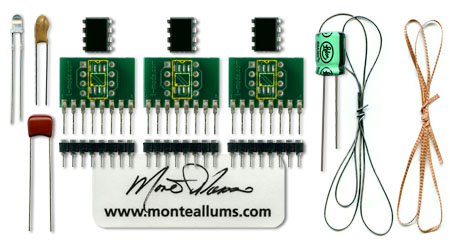

With this Kit you will receive a 3mm Super Bright Clear White LED, Solder and Desoldering Braid along with detailed easy-to-follow High Rez PDF Mod Instructions sent to you as an e-mail attachment.



$29.99

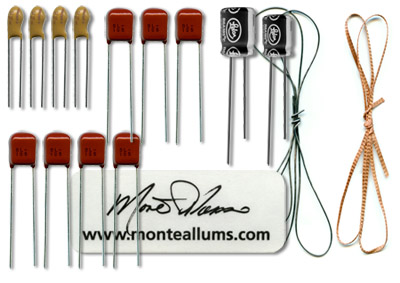

Boss PQ-4 Cap Upgrade Kit


Electrolytic caps in tube amps, over a period of time, start to leak, loose their tolerance and go bad. It’s just the nature of Electrolytic caps. Sometimes the leaking is actually visible. But Electrolytic caps can look okay and still be faulty. By replacing Electrolytic caps in older pedals you can actually improve the overall effect of that pedal. Honestly I was skeptical until I received an email from a client that was having issues after he modded his Boss BF-2 with one of my kits.  He said the flange effect was barely noticeable.  A couple of weeks later I received another email from the same client.  The client said he had solved the issue by replacing all the Electrolytic caps in his BF-2.  This peaked my interest so I started experimenting.

I was astonished how some of my older pedals benefited from the cap upgrade!  Noise seemed to be reduced and clarity and presence of the effect were enhanced.  I am now offering these Cap Upgrade Kits for many of the pedals I offer kits for.  In some cases some of these caps are already upgraded in the kits that I offer.  But I am offering kits that replace all the Electrolytic caps for those that have not purchased my kits.  They will benefit from upgrading the Electrolytic caps that I do not replace in my kits.  You’ll find that some of these same caps are already replaced in the kits I offer.  It’s a win win all around for those that want the maximum benefit when upgrading their pedals.  But I didn’t stop there, when possible I have upgraded these Electrolytics with Metal Film and Tantalum.  Not only do these caps have tighter tolerances but they will also last the life of the pedal.






With this Kit you will receive Solder and Desoldering Braid along with detailed easy-to-follow High Rez PDF Mod Instructions sent to you as an e-mail attachment.

$14.99

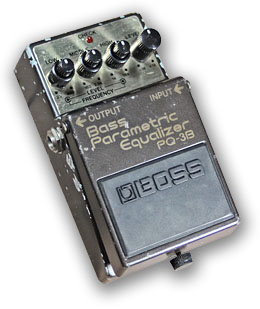

Boss PQ-3B Hi-Fi Plus Mod


First let me say that I know these were designed for bass but I find them very good on guitar also. These are highly sought after. Bringing top money on eBay. Stock they are really great tone shaping pedals but are rather noisy. This mod reduces noise and adds clarity to an already good circuit. With this mod we replace the cheaper noisy op-amp chips with low noise higher quality chips.

Lower quality capacitors are also replaced reducing noise even more and also adding a more focused Hi-Fi tone to the circuit. Noise is substantially reduced and the signal is passed through preserving the original tone of your guitar. You'll be shocked at the improvement this mod will make on this.

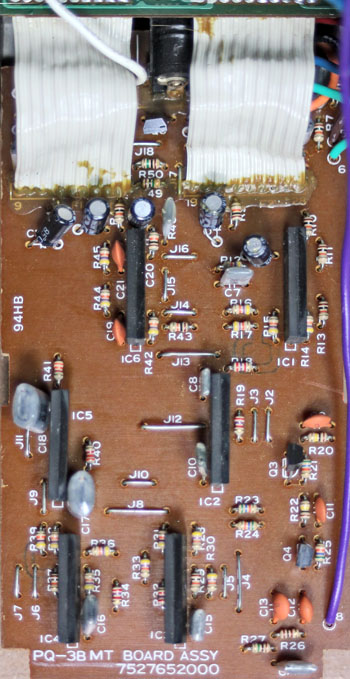

I am unsure if there are different versions of this circuit so before you order make sure your pcb looks like this.








With this Kit you will receive a 3mm Super Bright Clear White LED, Solder and Desoldering Braid along with detailed easy-to-follow High Rez PDF Mod Instructions sent to you as an e-mail attachment.


$29.99

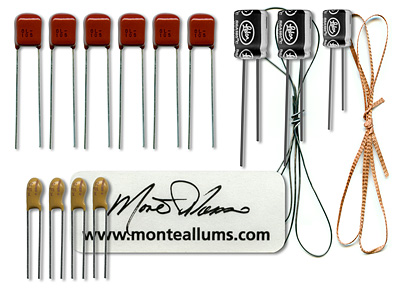

Boss PQ-3B Cap Upgrade Kit

Electrolytic caps in tube amps, over a period of time, start to leak, loose their tolerance and go bad. It’s just the nature of Electrolytic caps. Sometimes the leaking is actually visible. But Electrolytic caps can look okay and still be faulty. By replacing Electrolytic caps in older pedals you can actually improve the overall effect of that pedal. Honestly I was skeptical until I received an email from a client that was having issues after he modded his Boss BF-2 with one of my kits.  He said the flange effect was barely noticeable.  A couple of weeks later I received another email from the same client.  The client said he had solved the issue by replacing all the Electrolytic caps in his BF-2.  This peaked my interest so I started experimenting.

I was astonished how some of my older pedals benefited from the cap upgrade!  Noise seemed to be reduced and clarity and presence of the effect were enhanced.  I am now offering these Cap Upgrade Kits for mortal of the pedals I offer kits for.  In some cases some of these caps are already upgraded in the kits that I offer.  But I am offering kits that replace all the Electrolytic caps for those that have not purchased my kits.  They will benefit from upgrading the Electrolytic caps that I do not replace in my kits.  You’ll find that some of these same caps are already replaced in the kits I offer.  It’s a win win all around for those that want the maximum benefit when upgrading their pedals.  But I didn’t stop there, when possible I have upgraded these Electrolytics with Metal Film and Tantalum.  Not only do these caps have tighter tolerances but they will also last the life of the pedal.









With this Kit you will receive Solder and Desoldering Braid along with detailed easy-to-follow High Rez PDF Mod Instructions sent to you as an e-mail attachment.


$14.99
